CDU PAP7 WinWinG fully compatible with PSX

[TCASSE]

Hi All,
 A plugin fully compatible to use CDU PFP7 with PSX (stand alone)

See the vidéo https://1drv.ms/v/c/9078b8581e0fcab6/IQD8fyV7KamQTLUEtw4jm38SAfj1pOIyOvfBkasTWZzZENQ?e=chXZb1

1. Install MobiFlightConnector-10.5.3.20
2. Run MobiFlightConnector-10.5.3.20
4. Copy the 7 files (exe, ini and map.json) in a directory
4. Run  CDU_display for the display
5. Run CDU_key.exe for the keys
6. Run cdu_led.exe for the leds
7.modify the .ini files if needed (my PID is 0xBB37 but for the PAP4 it's 0xBB38)
 That's all


-> cdu display : https://1drv.ms/u/c/9078b8581e0fcab6/IQAIJFvG6R4ISrTuKSTbYaxBATGW1RhfOpbUeM3n02p6LCI?e=S6AEYN
-> cdu key :      https://1drv.ms/u/c/9078b8581e0fcab6/IQCd_kghom3uTIE7-ruOPkWeAZ4ANMkij41rUpi0Rh80J1A?e=Ig25Z7
-> cdu led :      https://1drv.ms/u/c/9078b8581e0fcab6/IQDPtE7F5uzBSL_OJkKd2rhlAU5flvj41PFJBrxBAAUZ5f8?e=k5t1LM
->  configL :     https://1drv.ms/u/c/9078b8581e0fcab6/IQCkUMTAlkEmSrag81fYJooJAUHHjOYCtpU17UG5TxKRuto?e=5FkGP9
-> configS :      https://1drv.ms/u/c/9078b8581e0fcab6/IQAMCOi9hCZJSbp8uw7cdZb_AScN_2e3g9lmjKk-xB88LbI?e=qg9fHm
-> configK :     https://1drv.ms/u/c/9078b8581e0fcab6/IQA6RAygM3QETJ4Y3nsaoikGAaATUuB7tIWHN7eVLmhZpwI?e=qLYlMN
->cdu_hid_map.json :   https://1drv.ms/u/c/9078b8581e0fcab6/IQArgiNvZb0SSqn_tfdGzISmAft7IOJ1-w9XiX1lWguc3Gg?e=OjKMwG


26/02/2026  modif  all files.exe for network and pb of HID not found. python 3.14 is needed
05/03/2026 added two kind of HID module in the code, depending of the user's dll

enjoy

[Christian_Norway]

Dear Tcasse,
This is excellent news if we can get the B747 CDU from WinWing (or Winctrl as they call it in the US) working on PSX!

Your video looks great.  Tried your setup but could not get it to work unfortunately, not sure if the issue is with the MobiFlightConnector or Python.. Any chance I could give you a call?
Best regards
Christian

[TCASSE]

Dear Tcasse,
This is excellent news if we can get the B747 CDU from WinWing (or Winctrl as they call it in the US) working on PSX!

Your video looks great.  Tried your setup but could not get it to work unfortunately, not sure if the issue is with the MobiFlightConnector or Python.. Any chance I could give you a call?
Best regards
Christian

Hi Christian, You call call me but I don't want to put my number on the net. How to do?.
Did you install the latest version of mobiflightconnector -> 10.5.3.20  ?
Did you install python?
If you start Mobiflight (and PSX of course) and click on cdu.py, you have to see the screen live. Nothing else to do for the display if PSX/Mobiflight/cdu.py on the same PC. This is the first step. Try this.

[Christian_Norway]

Thank you very much for responding :-)
Yes, I have tried, but unfortunately it's still not working.
I will send you a few screenshots, maybe you will easily see what needs to be done :-)
Thanks and best regards
Christian

[Christian_Norway]

Pictures of setup:

https://1drv.ms/f/c/7d7f83ce4bbfb549/IgDdx7xjcVbHQZHaNbuL3Ao_ARjM_PfcC6B1j5VM2_tInfk?e=DLhgeN

Apologies for the delay in response, I'm in Miami on B747-400  simulator training :-)

[TCASSE]

Hi Christian,

Need the latest version of Mobiflight 10.5.3.20 (You have 10.5.3 and it's not good)

[Christian_Norway]

Thank you :-) I downloaded Mobiflight yesterday from their website and I have version 10.5.3 build 20250406.  Tried again through the mobiflight website and installed again, but still the same version.  I will search other places for a version 10.5.3.20.
Best regards
Christian

[Christian_Norway]

Found the correct version here:
https://github.com/MobiFlight/MobiFlight-Connector/releases/tag/10.5.3.20

Installing and crossing fingers :-)

(I see that if i would have activated beta version autoupdate, I would have had the latest version).

[Christian_Norway]

Unfortunately still not working. I suspect some issue with Mobiflight..
Best regards
Christian

[PanosI]

After all the above steps the only that I've managed is to see the TAKEOFF REF page that is displayed on the PSX'S left FMC to the WinWing CDU PAP7.

Nothing else is working except some key presses in the PAP7 ( RTE, LEGS I don't remember fro memory) are sending commands like NUM 1, NUM 2 etc which are showing the relevant layouts.

[TCASSE]

Hello All, new version more simple to use (no need of xplane), just mobiflight

[PanosI]

I tried the new version and still have the same problem.

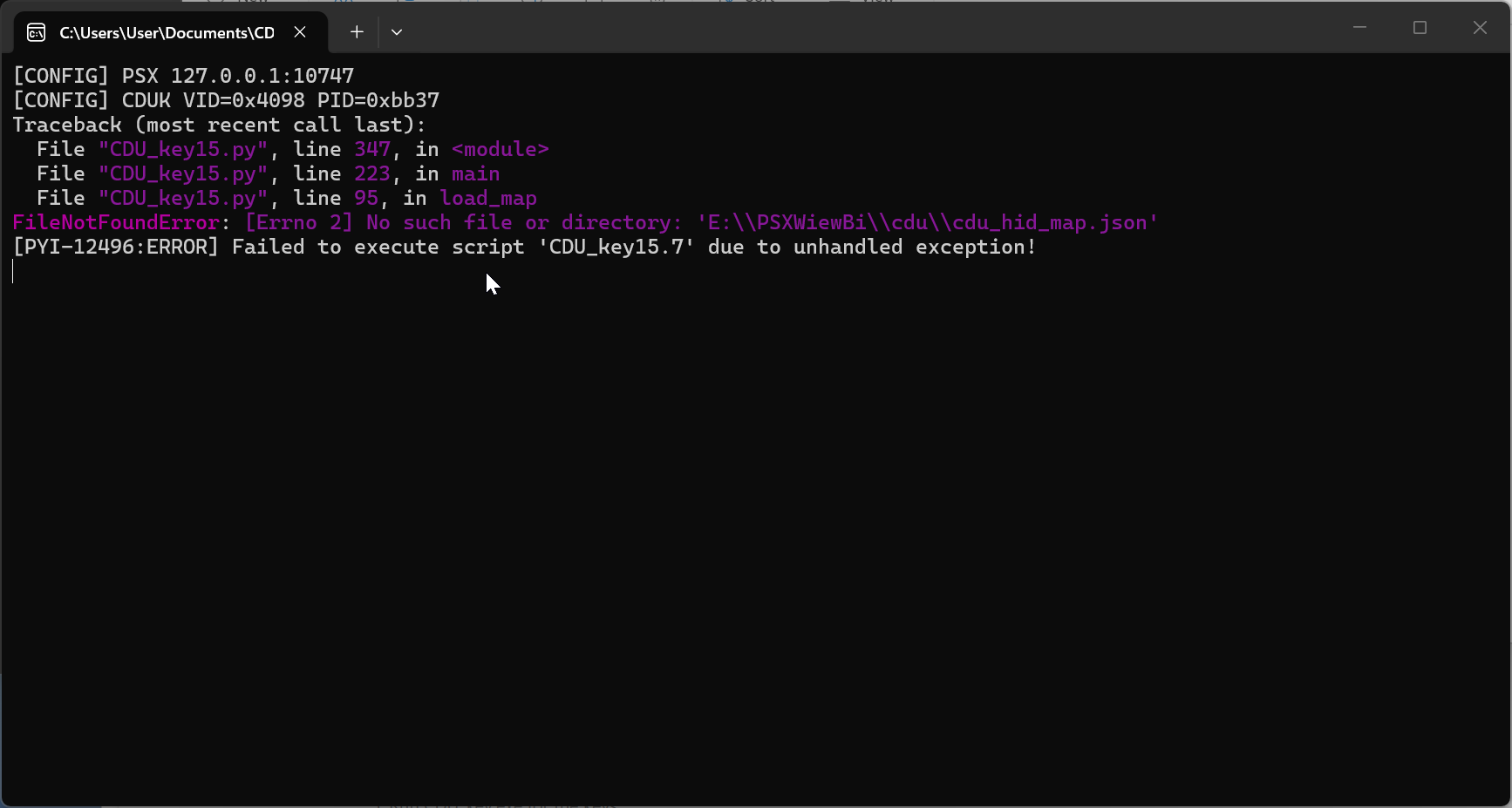

When I run CDU_key.exe for the keys, is opening and instantly closes.

I managed to take a screenshot.

[Christian_Norway]

Dear Tcasse,
Thank you kindly for the update!!
Good news, I can now see the screen from the CDU being mirrored on the WinWing CDU! :-)
However, the WinWing will not take/register any inputs through the buttons and transfer this to PSX.
I have the PAP4 (for the B747) but there are no really significant differences from the PAP7, only one button I believe?
Any suggestions?
All inputs warmly welcome, thanks again!
Best regards,
Christian

[Christian_Norway]

https://1drv.ms/i/c/7d7f83ce4bbfb549/IQCAwy2URRNiSLUD232Jmk3kATxaWVoTQVmHH5ZO1xi8RcM?e=fddDfh

[img]https://1drv.ms/i/c/7d7f83ce4bbfb549/IQD7yHFZ9mwfTLuokk63KXPlAS0K93ReYLJFebpWoUTfL-0?e=EXCBvd[img]

https://1drv.ms/i/c/7d7f83ce4bbfb549/IQBL9tF-m1ZUSaGPZ2qFlXnbAaGsrQ1b_51shfzvM6VdxO0?e=6hwywe

[TCASSE]

I tried the new version and still have the same problem.

When I run CDU_key.exe for the keys, is opening and instantly closes.

I managed to take a screenshot.

OK solved. I file was missing.

[PanosI]

OK solved. I file was missing.

Success!!

Two things that I quick noticed. When I click LEGS also the NUM 2 is activated, the same with FIX and NUM 1, ALTN and NUM 5 and MENU and letter G.

Now we are waiting for the PAP 3N ! ;-)

[Christian_Norway]

OK solved. I file was missing.

Thanks, great progress! I am getting the following error message:

https://1drv.ms/i/c/7d7f83ce4bbfb549/IQDoDtYlSwuNSaqZZXRV5wEgAUpDx050SxyCl4I2ta6W0vQ?e=nwbDMo

[PanosI]

Thanks, great progress! I am getting the following error message:

https://1drv.ms/i/c/7d7f83ce4bbfb549/IQDoDtYlSwuNSaqZZXRV5wEgAUpDx050SxyCl4I2ta6W0vQ?e=nwbDMo

from the error I think that you don't have this file

cdu_hid_map.json

in the folder with all the files

[Christian_Norway]

from the error I think that you don't have this file

cdu_hid_map.json

in the folder with all the files

Dear Tcasse,
Thanks, I copied the file into the folder, but unfortunately no change.
I can see the CDU being mirrored, but no input to the CDU when buttons are pushed.
Kind regards
Christian

https://1drv.ms/i/c/7d7f83ce4bbfb549/IQCiqSARIJWaSqbUEudGpEwdATW0X-0y7ZSTqB5i5TMdXfw?e=8BX5Pi

https://1drv.ms/i/c/7d7f83ce4bbfb549/IQCV_CVa-ermSLn1FdJRsBq0AUven9Zynvb-gvmaR5WiN44?e=dmS2MG





[TCASSE]

Dear Tcasse,
Thanks, I copied the file into the folder, but unfortunately no change.
I can see the CDU being mirrored, but no input to the CDU when buttons are pushed.
Kind regards
Christian

https://1drv.ms/i/c/7d7f83ce4bbfb549/IQCiqSARIJWaSqbUEudGpEwdATW0X-0y7ZSTqB5i5TMdXfw?e=8BX5Pi

https://1drv.ms/i/c/7d7f83ce4bbfb549/IQCV_CVa-ermSLn1FdJRsBq0AUven9Zynvb-gvmaR5WiN44?e=dmS2MG





my CDU is PAP7 with a PID = 0xBB37. Your CDU use another PID. Find UsbTreeView_x64.zip on the web and read the value your PID. then modiy the ini file with the correct value. I found PID = 0xBB40 Try this value in the .ini
